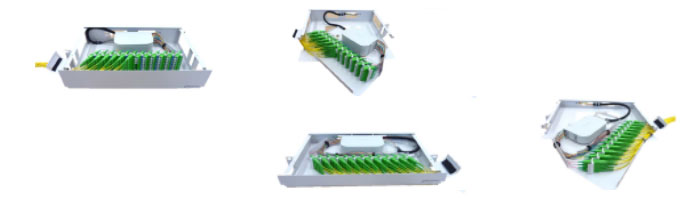

RM027-05 MPSP Distribution Drawer 1U-48SC And 2U-96SC
Features and Benefits
• Excellent optical fibre cord management, minimum cable and patchcords
movement.
• Drawers available in right-pivoting (RP) and left-pivoting (LP) version
• Pigtails of semi-tight coated type, coloured on both 900μm and 250μm
coating to provide full colour identification for splicing
• Transparent adapter dust caps for visible light testing
• Supplied with single element splice cassettes (max 12 splices)
• Splice cassettes for ANT or mini heat shrink splice protectors.
• Easy accessible swappable splice cassettes.
• Cable and fibre bend protections (min. fibre bend 30 mm)
• Cable entry for max. 2 cables at the backside, optional on left or right side.
• Adapter numbering on patchpanel.
• Flexible rear and front mount.
Technical Data
Drawer
• Dimensions: 1U 2U
• Height 44.5 mm 89 mm
• Width 480 mm
• Depth 302 mm
• Mounting options 19 inch (ETSI brackets on request)
• Mounting positions Front recessed – 100mm
Rear recessed – 20mm
• Material:
• Powder coated mild steel plate
• Colour according to RAL 7035
• Cable bending radius rear mounted Minimum 135 mm for a 19” cabinet
Splice cassettes
• Type and number SE type, 12 splices/cassette, 8 cassettes/drawer
• Splice protectors ANT type
• Fibre storage length Maximum 150 cm
Adapters
• Type SC/APC Zirconia, conforming to IEC 60874
• Dust caps Transparent
Pigtail
• General:
• Pigtail colour 12 pcs, primary and secondary coating coloured
• Pigtail coating Easy strip, semi-tight coated
• Connector type SC/APC 8°
• Pigtail fibre ITU-T G.657 A1 or ITU-T G.657 A2
• Pigtail diameter 900μm
• Applicable standards IEC 61753/61754/61755
• Optical Characteristics:
• Insertion loss requirements IEC 60753-1 Grade C
• Insertion Loss, max average, random mated 0.25 dB random mated
• Insertion Loss, max for >97% of samples 0.50 dB random mated
• Insertion Loss, max for 100% of samples 0.70 dB random mated
• Insertion Loss, max for 100% of samples , 0.30 dB to reference connector
• Return Loss requirements IEC 60753-1 Grade 1
• Return Loss, minimum ≥ 65 dB
