Sinus Serisi 1 – 2 – 3 KVA
Real “On-Line“ Technology
1 Phase Input – 1 Phase Output
1 kVA – 3 kVA
– “On-Line“ technology with real sine wave output
– Microprocessor controlled
– PWM, IGBT technology
– Wide input voltage range
– Smart RS-232 communication port
– SNMP software support (optional)
– Short circuit and overload protection
– Modular design
– Additional backup time with battery (optional)
– “Cold start”
– Rack Type option upon request
– Experienced technical service support
– 2-year full warranty in accordance with ISO 9000 and CE standards
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
Aynı Markalı Diğer Ürünlerimiz
Hybrid Inverter
– Grid / Solar connection
– Battery charging feature from the grid
– Low power consumption in idle operation
– Advanced LCD Control Panel
– System traceability with internal Ethernet
– Very light with its transformerless structure
– Overvoltage, short circuit, overheat protection
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
‘- Internal MPPT solar charger, inverter, battery in a single cabin
– Portable: You can use the cabin and solar panels wherever you want for your energy needs.
– Easy installation: can be installed without the need for a technician.
– Affordable Price
– Unlimited, clean, free energy from the sun that you can use for years
– Possibility of charging the battery with mains electricity on sunny days
You can view the details by clicking on the PDF icon for product technical specifications and details, download the file or send it to the address you want via e-mail.
Static UPS with Kinetic Energy Storage (CPM)
CPM 300/360 Critical Power Module is a new UPS concept for power protection in data centers.
Piller CPM is a new concept in UPS technology. It aims to revolutionize power protection in data centers, save space and significantly reduce the total cost of ownership.
Piller’s CPM system is designed to meet the challenges faced by data center owners and operators.
Compact design with up to 75% smaller footprint
High availability – 5-mode power system usage
High scalability – multiple configuration options with minimal site preparation
Lowest level of service intervention
By using kinetic energy storage, CPM provides constant power with a reduced footprint and a significant reduction in operating costs. CPM also eliminates the need for maintenance of battery storage systems.
Benefits of CPM for data centers:
Reduced real estate requirements
High efficiency
Reduced service intervention and costs
User-friendly design
Five different operating modes
Rapid deployment
Reduced ancillary assets
Increased critical power density
Lower total loss
Guaranteed GenSet architecture
Lower maintenance costs and longer service life are among the many reasons why data center operators are considering Batteries CPM as a logical alternative to traditional lead/acid chemical battery systems.
Recent test results demonstrate the efficiency advantages of CPM over traditional battery static UPS systems.
In addition, modern diesel generators are suitable for kinetic energy storage (CPM) systems, which provide the ideal combination of power conservation and performance.
For product specifications and details, click on the PDF icon to view details, download the file or send it to the address of your choice via e-mail.
Hybrid Battery Backup Dynamic UPS (UBR)
Natural sine wave signal obtained without using semiconductor material
-%50,+%15 wide input voltage tolerance
±%5 input frequency tolerance
Up to 96% efficiency
99% harmonic suppression under all conditions
Input current harmonics below 3%
Unlimited crest factor
High short circuit resistance (14xln)
Input power factor 0.99
1 hour at 110% load, 2 minutes at 150% load
100% Galvanic isolation
650 thousand hours MTBF period
25 years operating life
Low maintenance costs
Low operating costs
40% low battery usage
Natural ventilation
Ability to provide full capacity output even at capacitive power factor
Compatible with BMS and many communication systems
Container cabin solution option
Water cooled solution option
Continuous and clean energy source dynamic uninterrupted The most important feature of power supplies is that they have a unique synchronous machine that produces natural sine wave independent of the network. UNIBLOCK-R is a model with a battery backup structure and a backup structure within itself. This product, which has a solution capacity in MV and LV conditions, is produced between 150kVA-1100kVA as a single without paralleling. UNIBLOCK_R dynamic hybrid UPS helps meet our Tier 3 and Tier 4 requirements since it provides backup from 4 separate lines in its own structure. Your critical loads will have high reliability. When you prefer UBR Dynamic UPS; needs such as compensation panel and air conditioner will be eliminated. A much more efficient, high-quality, safe and long-lasting solution will be obtained with a single system.
Under dynamic load conditions, even in sudden peak currents, the voltage generated from the network independent synchronous motor allows you to obtain a parasitic and natural sine wave at the UPS output.
The short circuit currents occurring on the load side are eliminated up to 14 times the nominal current, ensuring the continuation of selective critical load operation.
Thanks to independent grounding, there is no need for an additional isolation transformer.
Harmonic filters provide high efficiency in low areas since capacitors are not required.
UNIBLOCK-R dynamic hybrid UPSs have high earthquake standards. They are designed to withstand 1G horizontal and 0.5G vertical earthquake acceleration.
Battery life is 40% longer thanks to the use of battery operation only during power outages and much lower AC ripple.
System ventilation is provided naturally thanks to the industrial fan integrated into the UNIBLOCK synchronous machine. There is no need for an additional air conditioning system.
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
Diesel Powered Dynamic UPS (UBTD+)
Natural sinus signal obtained without using semiconductor material
-%50,+%15 wide input voltage tolerance
±%5 input frequency tolerance
Up to 96% efficiency
99% harmonic suppression under all conditions
Input current harmonics below 3%
Unlimited crest factor
High short circuit resistance (14xln)
Input power factor 0.99
1 hour at 110% load, 2 minutes at 150% load
100% Galvanic isolation
1,850,000 hours MTBF period
25 years operating life
Low maintenance costs
Low operating costs
40% low battery usage
Natural ventilation
Ability to provide full capacity output even at capacitive power factor
Compatible with BMS and many communication systems
Container cabin solution option
For product technical specifications and details, click on the PDF icon to see the details You can view, download the file or send it to the address you want via e-mail.
Dynamic UPS with Kinetic Energy Storage (UBT+ with PowerBridge)
Natural sinus signal obtained without using semiconductor material
-%50,+%15 wide input voltage tolerance
±%5 input frequency tolerance
Up to 97% efficiency
99% harmonic suppression under all conditions
Input current harmonics below 3%
Unlimited crest factor
High short circuit resistance (14xln)
Input power factor 0.99
Ability to work for 1 hour at 110% load and 2 minutes at 150% load
100% Galvanic isolation
MTBF period is very long
25 years operating life
Low maintenance costs
Low operating costs
40% low battery usage
Natural ventilation
Ability to provide full capacity output even at capacitive power factor
Compatible with BMS and many communication systems
Container cabin solution option
Water cooled solution option
Continuous and clean energy source dynamic uninterrupted The most important feature of power supplies is that they have a unique synchronous machine that produces natural sine waves independent of the network. UNIBLOCK-T+ with PowerBrdige is a model with a Kinetic Energy Storage structure. This product, which has a solution capacity in MV and LV conditions, is produced between 625kVA-2500kVA as a single without paralleling. When you prefer a Dynamic UPS with Kinetic Energy Storage; needs such as compensation panels and air conditioning will be eliminated. A much more efficient, high-quality, safe and long-lasting solution will be obtained with a single system.
Thanks to the three-legged shock coil called MAGIC CHOKE, it provides decoupling by suppressing current harmonics from the load to the network, isolating voltage harmonics from the network to the load and limiting short-circuit currents directed to the network.
With the POWERBRIDGE kinetic energy storage option, it provides high efficiency uninterrupted energy without using a battery group. With the 16.5MJ, 2×16.5MJ, 21MJ, 2x21MJ, 35MJ, 2x35MJ, 60MJ and 80MJ options, short interruptions are backed up by converting kinetic energy into electrical energy. The kinetic energy storage system has a unique feature with backup times of over 1 minute at full load in case of power outages.
Under dynamic load conditions, even in sudden peak currents, the voltage generated from the network independently in the synchronous motor allows you to obtain a noise-free and natural sinus at the UPS output.
The short circuit currents formed on the load side are eliminated by 14 times the nominal current, allowing the continuation of selective critical load operation.
The life of the batteries is 40% longer thanks to the use of battery operation only in power outages and much lower AC ripple.
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
Battery Backup Dynamic UPS (UBT+ with Battery)
Natural sinus signal obtained without using semiconductor material
-%50,+%15 wide input voltage tolerance
±%5 input frequency tolerance
Up to 97% efficiency
99% harmonic suppression under all conditions
Input current harmonics below 3%
Unlimited crest factor
High short circuit resistance (14xln)
Input power factor 0.99
1 hour at 110% load, 2 minutes at 150% load
100% Galvanic isolation
850 thousand hours MTBF period
25 years operating life
Low maintenance costs
Low operating costs
40% low battery usage
Natural ventilation
Ability to provide full capacity output even at capacitive power factor
Compatible with BMS and many communication systems
Container cabin solution option
Water cooled solution option
Continuous and clean energy source dynamic uninterrupted The most important feature of power supplies is that they have a unique synchronous machine that produces natural sine wave independent of the network. UNIBLOCK-T+ with Battery is a model with battery backup structure. This product, which has a solution capacity in MV and LV conditions, is produced between 625kVA-1670kVA as a single without paralleling. When you prefer Dynamic UPS with battery backup; needs such as compensation panel and air conditioning will be eliminated. A much more efficient, high-quality, safe and long-lasting solution will be obtained with a single system.
Thanks to the three-legged shock coil called MAGIC CHOKE, it provides decoupling by suppressing current harmonics from the load to the network, isolating voltage harmonics from the network to the load and limiting short-circuit currents directed by the network.
Under dynamic load conditions, even in sudden peak currents, the voltage generated from the network independent synchronous motor allows you to obtain a noise-free and natural sine wave at the UPS output.
Short circuit currents occurring on the load side are eliminated up to 14 times the nominal current, ensuring the continuation of selective critical load operation.
Battery operation is used only during power outages and thanks to the much lower AC ripple, the life of the batteries is 40% longer.
System ventilation is provided naturally thanks to the industrial fan integrated into the UNIBLOCK synchronous machine. There is no need for an additional air conditioning system.
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
On-Line ‘Double Conversion Technology DSP Controlled, IGBT Rectifier,

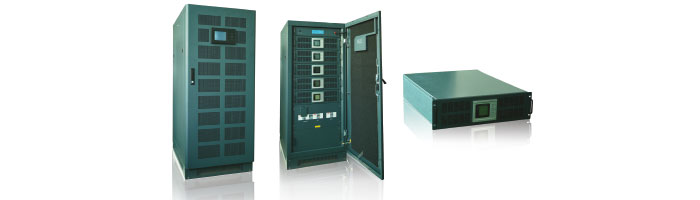

Modular UPS 3 Phase Input – 3 Phase Output / 10 – 520 kVA
Features
High efficiency (≥95%)
High output power factor (0.9; optional 1)
Hot swappable modules
Rectifier and inverter with IGBT technology
Ability to control each module independently
DSP Controlled Technology
Modular N+X Parallel Backup
Wide input voltage range
High Input Power Factor (>0.99)
Compatible with Soft Start and Generator
Standard 19” dimensions
Touchscreen user-friendly Turkish LCD Front panel
Small footprint up to 520kVA in a single cabinet
Capacity increase with paralleling up to 4 cabinets
Compact sized modules in only 3U height
Easy and fast module replacement, superior MTBF and MTTR
Internal Manual Bypass
Remote or local emergency shutdown control
Shared battery usage
Programmable battery voltage between 192Vdc – 240Vdc
Smart charging mode with adjustable charging current
SNMP / Mod Bus protocol support
Internal powerful charging card in modules and cabinet
Versatile communication interfaces for different applications
Modular battery cabinet support (Optional)
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
“Real On-Line “Double Conversion” Technology
DSP Controlled, IGBT Rectifier UPS
3 Phase Input / 3 Phase Output 10 – 800 kVA
-IGBT Rectifier
-IGBT Inverter
-DSP controlled processor
-High Efficiency
-Eco Mode
-Active input power factor correction (pfc 0.99)
-Active harmonic correction
-Wide input voltage range
-Intelligent battery charging system
-Static and manual bypass as standard
-Extendable battery feeding time
-Low installation and operating cost
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
Real On-Line “Double Conversion” Technology
DSP Controlled, IGBT Rectifier UPS
3 Phase Input / 3 Phase Output 10 – 400 kVA
– IGBT rectifier
– IGBT Inverter
– DSP controlled processor
– Active input power factor correction, PFC (PF 0.99)
– Active harmonic correction (THDI ≤%3)
– Wide input voltage range
– Compatible operation with generator
– Energy saving mode (ECOMODE)
– Backup and power increase thanks to paralleling feature
– Smart battery charging system
– Easy synchronization with external sources
– Static and manual bypass as standard
– Galvanic isolation and special voltage application options
– Communication with computer and network systems (SNMP)
– Extendable battery feeding time
– Low installation and operating cost
– Compliant with ISO 9001, ISO 14001 and CE standards 2 year full warranty
For product technical specifications and details, you can view the details by clicking on the PDF icon, download the file or send it to the address you want via e-mail.
INFORM KALIA UPS
On-Line “”Double Conversion”” Technology
3 Phase Input –3 Phase Output
10kVA – 15kVA – 20kVA
– High Output Power Factor (0.9)
– Easy to use LCD display
– Wide frequency and voltage range
– High efficiency
– Active input power factor correction; PFC > 0.99
– Parallelization feature (up to 3 units)
– Real On-Line “Double Conversion” Technology, DSP Controlled, IGBT Rectifier & Inverter
– Smart battery management software and automatic battery test feature, adjustable battery number feature, 3-stage charging design with optimized battery performance
– Generator compatible operation
– Frequency Converter operating mode selection
– Environmentally friendly
– Wide range of communication options Standard RS-232 and USB, EPO Optional SNMP, Relay card, Modbus
– Economical operation with ECO Operating Mode
– 2-year extended Inform warranty in accordance with ISO 9001, CE, ISO 14001 standards
– INFORM 7/24 Technical Service
You can view the details by clicking on the PDF icon for product technical specifications and details, download the file or send it to the address you want via e-mail.
