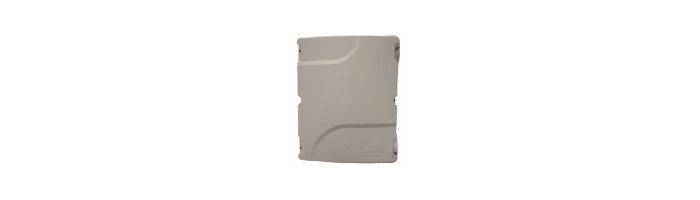

WM055-06 LDWB – Large Distribution Wall Box
Features and Benefits
• For internal or external use.
• Can be supplied with single element or single circuit trays. Single element
splice capacity is 240 fibres. Single Circuit splice capacity is 160 fibres.
Single circuit splice trays are a single tray with two separate storage areas.
• Note: For use with 1.5mm splice protectors. Crimp splices can also be used
in the single element trays but the capacity is reduced to 6 fibres per tray.
• Each box comes supplied with a top and bottom routing manifold for fibre
routing to the splice trays.
• All fibres are positively managed to maintain a 30mm minimum bend radius
within the wall box.
• Splice trays hinge upwards individually, allowing full access to spliced fibres
without disturbance to live fibres in adjacent trays.
• The box can be adapted for multiple applications using a variety of kits for
loop cable entry, in-line cable entry, locking for aerial cables etc. See
additional items on pages 3 and 4.
• The box is suitable for loop and riser applications.
• Cables can enter / exit from the top or bottom face of the box.
• The box is sealed to IP55 and the boxes are moulded from UV stable material
to prevent discolouring. The boxes are made using flame retardant UL94-V0
rated materials
Technical Data
• Number of Input cable ports: 1 (can also be used for in-line pass through). Note output ports can also
be used as additional input ports.
• Number of Output cable ports: 48 for 3-6mm cables (24 on top and 24 on bottom face of box)
8 for 6-12mm cables (4 on top and 4 on bottom face of box).
• Maximum Input cable diameter (mm): 12 (M20 Cable gland).
• Maximum Output cable diameter (mm): 3-6 (48 ports), 6-12 (8 ports)
• Maximum number of splice trays: 20 Single Element Trays = 240 fibres
40 Single Circuit = 160 fibres on 4f per trays basis (note = 20 double SC
trays where each tray has two storage areas)
• Required space envelope (mm): (w) 320 x (h) 410 x (d) 115.
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material:-
• Box (Dark Grey): FR ABS Dark Grey (RAL7030)
• Box (White): FR ABS White (RAL9016)
• Splice trays: FR ABS White (RAL9016)
• Testing:-
• Closure sealing: IP55 – External product only
• Optical: Tested 1310nm,1550nm and 1625nm
• Dry heat: BS EN 60068-2-2 Test Bb
• Damp heat: IEC 60068-2-3: 1969
• Change of temperature: IEC 60068-2-14: 1984
• Vibration: IEC 60068-2-6: 1995
• Shock: IEC 60068-2-27: 1987
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
