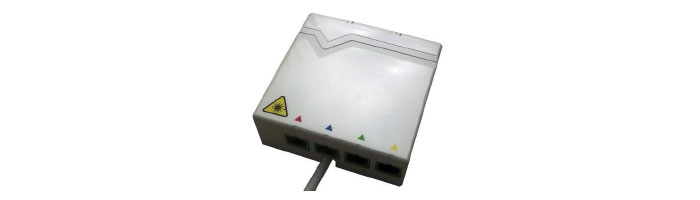

WM071-01 CTB MK3
Features and Benefits
• Compact & attractive design for interior wall mounting. Standard colour is
white RAL9010.
• On the front main cover a flip cover is available for an identification label.
• Removable main cover for easy access.
• Cables can enter unit from rear, bottom, top, right hand side or left hand side.
• Cables are fixed with dedicated combs, without the use of tie raps.
• Flip splice tray to allow access to pre-terminated tails and cable entry.
• Up to four G.657.A2 fibre 900 microns pigtails can be supplied as standard.
The pigtails are already stripped inside the slice tray. All fibres are positively
managed to maintain a 15mm minimum bend radius.
• On the splice tray, a bay is suitable for up to 4 fusion splices.
• Patch cords exit the unit on bottom face and are protected by the use of
inner-shuttered adapters.
• Supplied with a bracket for wall mounting (with screws or double face tape),
for embedded electrical junction box or for mounting directly onto a DIN Rail.
• When configured for one fibre, the CTB MK3 can accept a field mounted
connector.
• Can be supplied on a reel with a pre-installed stub of cable for direct mounting
without the need to open the box. Please check the following data sheets:
WM072 pre-terminated CTB MK3 kit for internal cables.
WM073 pre-terminated CTB MK3 kit for external cables.
Technical Data
• Maximum input cable diameter(mm) : 5 mm
• Number of input cable port: 1
• Maximum Capacity : 4 connectors type SC and 4 splices
• Dimensions (mm) : (l) 80 x (w) 80 x (d) 28
• Operating temperature : from -25 to +70°C
• Material/Color : ABS / White RAL9010
• Testing specification : FT_RD_WTC_14_03_70
• SC/APC 900 microns Pigtail : Fibre G.657.A2.
• inner-shuttered adapter type : SC/APC
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
