Features and Benefits
• Termination Box can be mounted internally or externally.
• Sealed to IP55.
• Removable cover for easy access and fitted with a lock for enhanced
security.
• Unit manufactured from UV stabilised fire resistant UL94-V0 material
allowing external installation.
• Single hinged splice tray enables access for working. The splice tray is
supplied interchangeable inserts and can accommodate up to 8 fusion
splice protectors of heat shrink or crimp type, or 8 mechanical splices.
• Customer drop cables (patch cords) exit from the bottom of the unit and
are sealed using a split grommet. Drop cables can also be routed
through the wall.
• Up to 4 SC type pigtails and adapters or 8 LC type pigtails and adapters
can be accommodated.
•All fibre are positively bend managed to a 30mm minimum bend radius.
• External input cable enters the unit from the bottom. Cable up to
11mm in diameter can be accommodated .
• For Blown Fibre applications a gas block connector can be housed within
the box.
• A knock out is provided in the base of the unit for applications where
the customer drop patch cords are required to be routed through the
wall into the premises.
Technical Data
• Number of Splice Trays: 1
• Maximum Fibre Capacity: 8
• Maximum Input Cable Diameter (mm): 11
• Maximum No. of Input Cables: 1
• IP Rating: 55
• Max Output Cable Diameter (mm): 3.2
• Maximum No. of Output Cables: 8
• Required space envelope (mm): (w) 140 x (h) 185 x (d) 32.
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material:-
• External Box FR ABS Grey RAL 7030
• Splice tray: FR ABS Light Grey RAL 7035
• Testing:-
• Optical: Tested 1310nm,1550nm and 1625nm
• Dry heat: BS EN 60068-2-2 Test Bb
• Damp heat: IEC 60068-2-3: 1969
• Change of temperature: IEC 60068-2-14: 1984
• Vibration: IEC 60068-2-6: 1995
• Shock: IEC 60068-2-27: 1987
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Cable management within the unit ensures the minimum bend
radius for optical fibre is not exceeded.
• Easily installed and fitted to the wall.
• One cable entry port for incoming cable of up to 15 mm OD.
• For internal use.
Technical Data
• Number of cable ports: 1 Input Cable –
• Maximum cable diameter (mm): 15.0 mm
• Required space envelope (mm): (L) 270 x (W) 272 x (D) 100
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material Internal Unit:-
• Cover: Polycarbonate
• Base: Polycarbonate
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Cabinets are 600mm in width.
• A variety of different heights and depths are available. 6U, 9U, 12U,
15U, 18U and 22U cabinets are available in 450mm depth, and 9U,
15U and 18U cabinets are also available in 600mm depth.
• Can accommodate a range of 19” products including the Prysmian
SRS3000 Splice Only, Patch Only, Splice and Patch and Storage
shelves.
• Sliding 19” mounting rails front and rear.
• Standard ventilation top and bottom. Up to two fans can be fitted to
top and bottom cover for cooling of active equipment. See additional
items.
• Rear panel included.
• Simple one man installation. Supplied completely assembled.
• The door opens 180° right or left hinged.
• Supplied with a lockable door and lockable side panels using the same
key.
• Heavy duty construction
Technical Data
• Dimensions (mm):
• 6U (w) 600 x (d) 450 x (h) 368
• 9U (w) 600 x (d) 450 or 600 x (h) 501
• 12U (w) 600 x (d) 450 x (h) 635
• 15U (w) 600 x (d) 450 or 600 x (h) 767
• 18U (w) 600 x (d) 450 or 600 x (h) 900
• 22U (w) 600 x (d) 450 x (h) 1034
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material: Steel
• Finish: Painted Grey RAL 7035
• Sealing: IP20
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Provides the termination of an optical cable of up to 48 fibres onto an
adapter panel. SC, FC, LC, and E2000 connectors can be
accommodated.
• Supplied with 5 single element splice trays. The box can be supplied
with splice trays for either heat shrink or crimp splice protectors.
• Suitable for both internal and external use. The box is rated to IP66.
• The box has four cable entry ports for input cables of up to 24mm in
diameter. Input cables are secured and sealed into the box using
heat shrinks.
• Output patchcords or cables exit the box through a 40mm plastic
cable gland. The gland can be used to secure a 40mm diameter
corrugated tube. The corrugated tube is sold separately in lengths
required by the customer. Please refer to additional items.
• Each half of the box has its own lockable cover to prevent
unauthorised access.
• Standard colour is RAL7035.
Technical Data
• Number of cable entries: 4 in, 1 x 40mm duct out
• Maximum cable diameter (mm): 24.0
• Maximum Capacity: 48 Fibres
• Maximum no. of customer feeds: 48
• Required space envelope (mm): (w) 400 x (h) 450 x (d) 150.
Note maximum width including fixing brackets is approximately 450mm
Maximum length including glands and fixing bracket = 540mm
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Sealing: IP66
• Material: –
• Cover: Mild Steel
• Base: Mild Steel
• Splice Trays: PC ABS
• Finish:-
• Cover: Painted Grey RAL 7035
• Base: Painted Grey RAL 7035
• Splice trays: Grey RAL 7035
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Stylish and attractive design for internal use.
• Supplied as standard with a base, a cover, top and bottom vented covers
and a lock (keyed or slot). Can also be supplied with a universal plastic
back plate pre-fitted.
• Can be supplied with a keyed lock for security or a slotted lock that can be
opened using a flat head screwdriver for easier access.
• Modular design. Supplied as a single unit, then upgrade boxes can be
purchased to mount above or below the initial box, such that the unit can
be stacked to any required height of boxes.
• Cable entry/exit possible from the bottom, top or rear.
• Front cover can be fitted to hinge to the left or right hand side..
• Provision to fit tailored mounting brackets within the box to enable the
fixing of additional items such as GTU, ONT etc.
• Patch panels can be fitted to accommodate data keystone jacks.
• Unit manufactured from fire resistant UL94-V0 material. Standard colour
white RAL 9016. Other colours available on request.
• Provision to fit a 6 socket electrical distribution board with surge
protection.
• Prysmian can offer to supply the box pre-fitted with any equipment
required. Contact Prysmian for further information.
Technical Data
• Required space envelope (mm): (w) 400 x (h) 307 x (d) 131 (Can be inserted into a wall to a maximum depth of 63mm)
• Internal Dimensions (mm): (w) 365 x (h) 275 x (d) 90 (Depth – 90mm consistent but rises to 110mm in centre).
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material:- FR ABS
• Finish: White RAL 9016
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Provides the termination of an optical cable of up to 144 fibres onto an
adapter panel. SC, FC, LC, E2000 and ST connectors can be
accommodated.
• Supplied with single element splice trays and pigtails already installed.
• Suitable for both internal and external use. The box is rated up to IP66.
• The box has four cable entry ports for input cables of up to 24mm in
diameter. Input cables are secured and sealed into the box using cable
glands, which are secured using supplied heat shrink sleeves.
• Output patchcords or cables exit the box through a 40mm plastic cable
gland. The gland can be used to secure a 40mm diameter corrugated
tube. The corrugated tube is sold separately in lengths required by the
customer. Please refer to additional items.
• Each half of the box has its own lockable cover to prevent unauthorised
access. Both locks are supplied to use the same key.
• The standard colour for the box is RAL7035.
• The material of the box is stainless steel painted (The box is made from
304 stainless steel with a powder coated finish).
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.

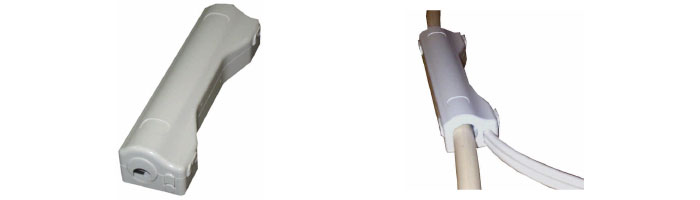

Features and Benefits
• Compact, low profile, wall mounted unit typically used in multi
dwelling units.
• Unit manufactured from fire resistant material to UL94-V0.
• Supplied with all of the components required to mount the unit to a
wall and secure an in-line Verticasa cable.
• Can accommodate Verticasa cables of up to 15mm in diameter.
• Can take out 2 drop tubes.
• Can be supplied to accommodate drop tubes of 5mm in diameter.
• The part is reversible which allows the drop tube to be taken out
from the left or right hand side.
• Standard colour is white RAL9016. Other colours are available on
request. Please contact the Prysmian sales desk.
Technical Data
• Max number of input cables: 1 in-line
• Max diameter of in-line cable (mm): 15
• Max number of drop tubes: 2
• Max diameter of drop tubes (mm): 5
• Tube Retention: > 70N
• Cable Retention: > 70N
• Required space envelope (mm): (h) 127 x (w) 35 x (d) 26
• Operating temperature: -25oC to + 70oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL 9016
• Flammability rating: UL94-V0
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.

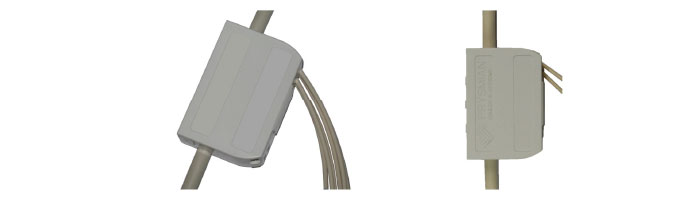

Features and Benefits
• Compact, low profile, wall mounted unit typically used in multi
dwelling units.
• Unit manufactured from fire resistant material to UL94-V0.
• Supplied with all of the components required to secure an inline Verticasa cable into the unit.
• Can accommodate Verticasa cables of up to 12mm in
diameter.
• Can take out 8 drop tubes.
• Can be supplied to accommodate drop tubes of 3mm in
diameter.
• It’s possible to reduce the length of the part breaking the top
part following the grooves with cut pliers.
• Standard colour is white RAL9016. Other colours are available
on request. Please contact the Prysmian sales desk.
Technical Data
• Max number of input cables: 1 in-line
• Max diameter of in-line cable (mm): 12
• Max number of drop tubes: 8
• Max diameter of drop tubes (mm): 3
• Tube Retention: > 50N
• Cable Retention: > 50N
• Required space envelope (mm): (h) 71 x (w) 45 x (d) 25.5
• Operating temperature: -20oC to + 60oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL 9016
• Flammability rating: UL94-V0
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Compact & attractive design for interior wall mounting.
• Cables can enter unit from rear, bottom, top, right hand side or left hand
side.
• Supplied with a bracket for wall mounting or mounting directly onto a DIN
Rail.
• G657A1 fibre pigtails supplied as standard. All fibres are positively
managed to maintain a 20mm minimum bend radius.
• Flip tray to allow access to connectorised tails and cable entry.
• Removable cover for easy access. The cover contains a cut out for a label
to be inserted and a further transparent cover is supplied to fit over the
label.
• Supplied with a security screw to prevent unauthorised access.
• Unit manufactured from fire resistant UL94-V0 rated material.
• Patchcords exit unit on bottom face and are protected by the use of
shuttered adapters.
• Standard colour is white RAL9016. Other colours are available on request.
• Can be supplied on a reel with a pre-installed stub of cable for direct
mounting without the need to open the box. Contact Prysmian for further
information.
Technical Data
• Number of input cable ports: 2 bottom, 1 rear, 1 top, 1 left, 1 right
• Maximum input cable diameter: 6mm
• Maximum Capacity: 4 Fibres
• Maximum no. of customer feeds: 4 Patchcords
• Required space envelope (mm): (l) 83 x (w) 100 x (d) 27
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL9016
• Testing:-
• Optical: Tested 1310,1550 & 1625nm
• Transportation: FT/RD/RESA/09/11/213 – 3.3
• Installation: FT/RD/RESA/09/11/213 – 3.4
• Climatic Storage: FT/RD/RESA/09/11/213 – 3.8
• Impact: FT/RD/RESA/09/11/213 – 3.8
• Cover Resistance: FT/RD/RESA/09/11/213 – 3.10
• Tensile: FT/RD/RESA/09/11/213 – 3.12
• Torsion: FT/RD/RESA/09/11/213 – 3.13
• Insertion Loss: FT/RD/RESA/09/11/213 – 3.14
• Climatic Testing: FT/RD/RESA/09/11/213 – 3.15
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Allows splicing from in line or butt cables to customer drop cables.
• Suitable for two butt or one inline cable of up to 15mm in diameter.
• In line cables can enter/exit from the unit on the left or right hand side.
• 24 drop cables (OD 5 mm) or 32 drop cables (OD 4.2 mm) can be
spliced. Drop cables exit the unit from the bottom face.
• The drop cable entries are suitable for cables or tubes from 2.5 to 5 mm
in diameter.
• Available in two sizes – RBMT4 with 4 trays and a module storage
section, or RBMT8 with 8 trays.
• Up to 8 fusion splices or 4 mechanical splices can be accommodated into
each of the splice trays (total of 64 fusion or 32 mechanical splices for
the RBMT8 and 32 fusion or 16 mechanical splices for the RBMT4).
• Can accommodate optical splitters. Contact Prysmian for further details.
• It’s possible to re-launch a cable (OD up to 15 mm) from the bottom
face.
• The Storage Area can accept up to 25m of 0.9mm fibre modules.
• Cable management ensures a 20mm minimum bend radius.
• Easily installed and fitted to the wall or inside a riser. Suitable for internal
use only and manufactured from UL94-V0 rated material.
• Input and output cables are retained using cable ties.
Technical Data
• No of Splice Trays: 4 (RBMT4), 8 (RBMT8)
• Max capacity (fibres) 32 (RBMT4), 64 (RBMT8)
• Max diameter of in line cable: 15mm
• Max number of drop cables: 24 (32 optional with smaller drop cables)
• Max diameter of drop cables: 5mm
• Required space envelope (mm): (h) 176 x (w) 130 x (d)60
• Operating temperature: -20oC to + 60oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL 9016
• Flammability rating: UL94-V0
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Eliminates the need for splicing in the customer premises.
• The Compact Termination box is pre-terminated in the factory to a length
of cable using SC/APC connectors.
• The standard cable lengths available are 30m or 50m. Other lengths can
be supplied. Contact Prysmian for further information.
• The standard cable type supplied is a 4mm diameter LSZH cable containing
an easy strip module, and up to four G657A2 fibres. Other cable types can
be supplied. Contact Prysmian for further information.
• Compact & attractive designed termination box for interior wall mounting.
• Supplied with a bracket that enables the box to be mounted to the wall
without removing the cover.
• The cable has a minimum bend radius of 10mm to allow cross wall routes
and door corner routes inside the premises. All fibres are positively
managed to maintain a 20mm minimum bend radius inside the CTB.
• Termination Box manufactured from fire resistant UL94-V0 rated material.
Cable sheath is LSZH (Low Smoke Zero Halogen).
• Patchcords exit the termination box on the bottom face and are protected
by the use of shuttered adapters.
• The standard termination box colour is white RAL9016. Other colours are
available on request.
• Fully tested in the factory. Each box is supplied with data for insertion loss
and return loss for each connector.
Technical Data – Termination Box
• Maximum Capacity: 4 Fibres
• Maximum no. of customer feeds: 4 Patchcords
• Required space envelope (mm): (l) 83 x (w) 100 x (d) 27
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL9016
• Testing:-
• Optical: Tested 1310,1550 & 1625nm
• Transportation: FT/RD/RESA/09/11/213 – 3.3
• Installation: FT/RD/RESA/09/11/213 – 3.4
• Climatic Storage: FT/RD/RESA/09/11/213 – 3.8
• Impact: FT/RD/RESA/09/11/213 – 3.8
• Cover Resistance: FT/RD/RESA/09/11/213 – 3.10
• Tensile: FT/RD/RESA/09/11/213 – 3.12
• Torsion: FT/RD/RESA/09/11/213 – 3.13
• Insertion Loss: FT/RD/RESA/09/11/213 – 3.14
• Climatic Testing: FT/RD/RESA/09/11/213 – 3.15
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Stylish and attractive design for internal use.
• Can accommodate up to a 1×32 splitter for splicing to customer
drop cables.
• The unit is supplied with 17 double tray splice trays. Each
splice tray has a second tray inside it that hinges out for access
providing a total of 34 splice trays for splitter inputs and outputs
(1 customer per tray).
• Supplied as standard with a base, a cover, top and bottom
vented covers and a lock (keyed or slot).
• Cable entry is via the right hand side of the unit. A straight
through riser cable can be accommodated.
• Drop cables exit from the top of the unit. Drop cables of 6mm
can be accommodated.
• Drop cables simply plug in to a push fit manifold providing
excellent retention and full flexibility for fibre routing.
• Can be supplied with a keyed lock for security or a slotted lock
that can be opened using a flat head screwdriver for easier
access.
• Front cover can be fitted to hinge to the left or right hand side.
• Unit manufactured from fire resistant UL94-V0 rated material.
• Standard colour white RAL 9016. Other colours available on
request.
Technical Data
• Maximum No. of splice trays: 34
• Maximum No. of Splitters: 2
• Maximum No. of Splitter Outputs: 32 (e.g. one 1×32 or two 1×16)
• Maximum no. of Drop Cables: 32
• Drop Cable Diameter (mm): 6
• Required space envelope (mm): (w) 400 x (h) 307 x (d) 131
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL9016
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Cabinet is 600mm in width and 300mm in depth.
• The cabinet is available in three different heights of 380mm,
600mm and 760mm. The usable internal height in units is 6U,
11U and 14U.
• The cabinets have a swing out frame for ease of cable routing
and to provide access to equipment.
• Supplied with 19” mounting rails and can accommodate a range
of 19” products including the Prysmian SRS3000 Splice Only,
Patch Only, Splice and Patch and Storage shelves.
• Simple one man installation. Supplied completely assembled.
• Supplied with a lockable transparent acrylic door, or with a steel
door.
• The cabinet is sealed to IP54.
• Heavy duty construction.
• Painted light grey RAL 7035.
Technical Data
• Height (U): 6, 11 or 14
• Dimensions (mm): 6U: (h) 380 x (w) 600 x (d) 330
11U: (h) 600 x (w) 600 x (d) 330
14U: (h) 760 x (w) 600 x (d) 330
• Operating temperature: -20oC to + 60oC (5 to 95% RH)
• Material:
• Enclosure: Sheet Steel 1.5mm
• Swing Frame: Sheet Steel
• Front Door: Extruded Aluminium and Acrylic (Transparent Door)
Sheet Steel (Steel Door)
• Finish:
• Enclosure: Powder Coated Paint Grey RAL 7035
• Swing Frame: Powder Coated Paint Grey RAL 7035
• Front Door: Anodized, Aluminium Silver (Transparent door)
Powder Coated Paint Grey RAL 7035 (Steel Door)
• Sealing: IP54 to IEC 60-529
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Compact, low profile, wall mounted unit typically used in multi
dwelling units.
• Unit manufactured from fire resistant material to UL94-V0.
• Supplied with all of the components required to secure an inline Verticasa cable into the unit.
• Can accommodate Verticasa cables of up to 9mm in diameter.
• Can take out 8 drop tubes of 3mm in diameter or 2 drop tubes
of 5mm in diameter.
• Can be supplied to accommodate drop tubes of 3mm and 5mm
in diameter.
• It’s possible to reduce the length of the part by removing the
top section using a pair of pliers.
• Standard colour is white RAL9016. Other colours are available
on request. Please contact the Prysmian sales desk.
Technical Data
• Max number of input cables: 1 in-line
• Max diameter of in-line cable (mm): 9
• Max number of 3mm drop tubes: 8
• Max number of 5mm drop tubes: 2
• Tube Retention: > 50N
• Cable Retention: > 50N
• Required space envelope (mm): (h) 71 x (w) 40 x (d) 20
• Operating temperature: -20oC to + 60oC (5 to 95% RH)
• Material: FR ABS
• Colour: White RAL 9016
• Flammability rating: UL94-V0
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Allows splicing from cables to cables.
• It is suitable for one inline cable of up to 9mm in diameter.
• Up to 6 drop cables of 2.6mm in diameter can be spliced to the in-line cable.
• The compact dimensions 70 x 50 x 25mm allow the unit to be installed in the
network where access is restricted: e.g. back box, riser, duct, etc…
• The cable entries are suitable for cables with 2.6 mm OD.
• Up to 6 fusion splices or can be accommodated into the splice tray.
• Cable management within the unit ensures the minimum 15mm bend radius
for optical fibre is not exceeded.
• Easily installed and fitted to the wall or inside a riser or back box.
• Input/output cables are secured at the cables entry levels.
• Unit manufactured from fire resistant UL94-V0 rated material.
• The standard colour is White RAL 9016. Other colours are available on
request.
Technical Data
• Maximum number of splices: 6 fusion
• Number of cable ports: 1 Input Cable – 6 Output Cables
• Maximum Input cable diameter (mm): 9.0
• Maximum Output cable diameter (mm): 2.6
• Required space envelope (mm): (L) 70 x (W) 50 x (D) 25
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material Internal Unit:-
• Cover: FR ABS – White RAL 9016
• Base: FR ABS – White RAL 9016
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
Features and Benefits
• Can be supplied in white or dark grey.
• Each box comes with three double splice trays (6 customer trays) pre-fitted,
and a single element splice tray for spare fibre storage.
• The box is supplied with a Gas/water block connector for use with blown fibre
input cables and a 6-6mm reducer and 3mm transport tube.
• All fibres are positively managed to maintain a 30mm minimum bend radius
within the wall box.
• A unique figure of eight locking system is integrated into the box. This
prevents movement of fibres from aerial input cables when subjected to ice
and wind loading.
• The box is sealed to IP55.
• Splice trays hinge upwards individually, allowing full access to spliced fibres
without disturbance to live fibres in adjacent trays.
•The wall boxes come with everything required to install one input cable and
up to six drop cables (only splice protectors to be ordered separate)
• Storage area inside the box to hold any unused output cable sealing
grommets.
• The boxes are UV stable to prevent discolouration of the material. The boxes
are manufactured from UL94-V0 rated materials.
Technical Data
• Number of cable ports: 1 input, 6 output
• Maximum cable diameter (mm): 18 Input, 3-6 Output
• Maximum number of splice trays: 6 Customer Trays (24 fibre)
1 Single Element Tray (for storage)
• Required space envelope (mm): (w) 220 x (h) 150 x (d) 50.
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material:-
• Box: FR ABS Dark Grey (RAL7030) or FR ABS White (RAL9016)
• Splice trays: FR ABS White (RAL9016)
• Testing:-
• Sealing: IP55
• Optical: Tested 1310nm,1550nm and 1625nm
• Dry heat: BS EN 60068-2-2 Test Bb
• Damp heat: IEC 60068-2-3: 1969
• Change of temperature: IEC 60068-2-14: 1984
• Vibration: IEC 60068-2-6: 1995
• Shock: IEC 60068-2-27: 1987
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
